DP, DPA and SGLang DP Router

DP, DPA and SGLang DP Router#

This guide explains the difference between Data Parallelism (DP) and Data Parallelism Attention (DPA), how to enable each mode correctly, and how to use the SGLang Model Gateway (SMG) for production-grade DP deployments.

Data Parallelism (DP)#

Data Parallelism (DP) is the most common parallelism strategy that replicates the entire model across multiple GPU sets and processes different batches of requests in parallel. Each GPU set handles independent requests. With dedicated routing strategies, as we will introduce later, with those proper routing algorithms in SGLang Model Gateway, the throughput of your serving system could be multiplied nearly linearly.

Key characteristics#

  • Each replica has a full copy of the model

  • Requests are distributed/scattered across replicas

  • No inter-replica communication during one request’s inference (for simple DP)

Data Parallelism Attention (DPA)#

Data Parallelism Attention (DPA), also known as DP Attention, is an advanced parallelism strategy. While DPA provides the most significant benefits for Multi-Head Latent Attention (MLA) models (such as DeepSeek, MiniMax, Kimi-K2), it also supports standard attention models like Qwen.

The Problem with Tensor Parallelism for MLA Models#

The most common parallelism strategy for inference is Tensor Parallelism (TP). However, TP might not be the most efficient strategy for certain models. For example, DeepSeek models use MLA and only have one KV head. If we use tensor parallelism on 8 GPUs, it will lead to:

  • Duplicated KV cache across all GPUs

  • Unwanted memory usage that limits batch size

  • Reduced throughput due to memory constraints

How DPA Works#

DPA addresses these limitations by applying data parallelism specifically to the attention component.

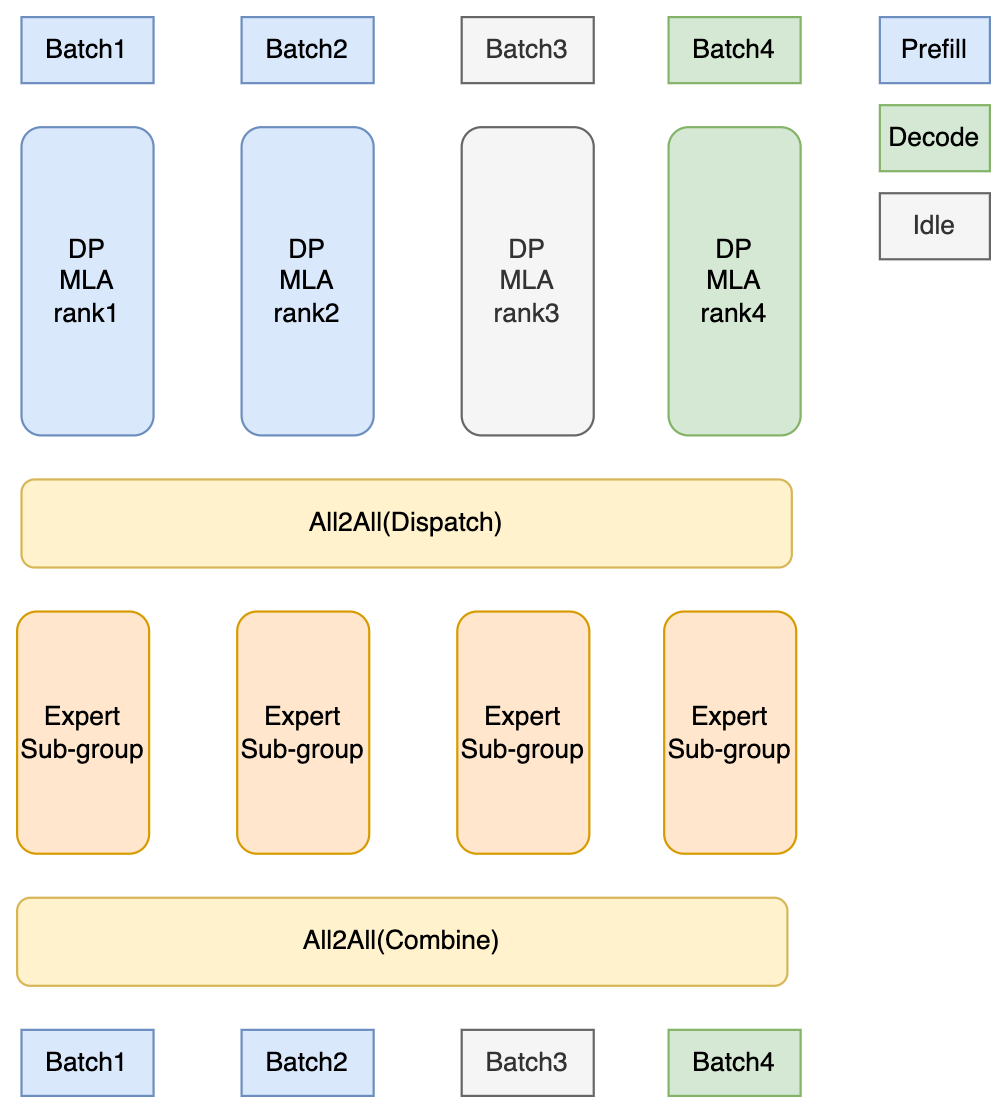

DPA + EP Architecture

Each DP replica:

  • Processes different batches independently (can be in different forward modes: prefill, decode, or idle)

  • Maintains its own KV cache (no duplication)

  • Enables significantly larger batch sizes due to memory savings

Communication patterns in DPA + EP:#

  • All2All (Dispatch): Routes tokens to expert sub-groups based on gating decisions

  • All2All (Combine): Gathers computed results from experts back to original token positions

Key benefits of DPA#

  1. Significantly reduced KV cache memory: Each DP replica only stores KV cache for its own batches

  2. Larger batch sizes: Memory savings enable larger batch sizes

  3. Improved decoding throughput: Significant throughput gains for MLA-based models

  4. Independent forward modes: Each DP replica can be in different forward modes (prefill, decode, or idle) and handles its assigned batches independently during attention computation

DPA with Expert Parallelism for MoE#

For MoE models like DeepSeek, DPA is often paired with Expert Parallelism (EP) for best throughput at scale. However, DPA does not require EP: you can enable DPA without EP if your deployment does not need expert sharding.

  • Distribute 256+ expert weights across GPUs (cannot fit on a single GPU)

  • Enable efficient all-to-all token routing via DeepEP

  • Scale to large clusters (up to 5x throughput improvement over vanilla TP)

Target Models#

DPA supports the following model architectures:

  • MLA (Multi-Head Latent Attention) models - where DPA provides the most significant benefits:

    • DeepSeek family (DeepSeek-V2, DeepSeek-V3, DeepSeek-R1)

    • MiniMax models

    • Kimi-K2

    • Other models using MLA architecture

  • Standard attention models - also supported:

For models like Llama, with standard GQA, standard DP, or TP is typically recommended.

To enable DPA, add --enable-dp-attention to your server launch command.

Activation Logic#

DPA is enabled explicitly via server arguments (CLI or config). You must set both --dp-size and --enable-dp-attention:

python -m sglang.launch_server \
    --model-path deepseek-ai/DeepSeek-V3 \
    --tp 8 \
    --dp-size 8 \
    --enable-dp-attention

Important: --dp-size must be greater than 1 for DPA to work. When dp_size == 1 (default), --enable-dp-attention is automatically disabled. The constraint tp_size % dp_size == 0 must also be satisfied.

Standard DP for MLA models#

Note that MLA models, of course, also support DP. Suppose you want to enable standard DP for MLA models. First, launch each MLA model’s replica independently. You may launch these replicas one by one with DPA enabled. After launching each MLA model’s replica, launch an SMG and connect all the replicas to the SMG. A detailed explanation of SMG is as follows.

Modern Data Parallelism SGLang Model Gateway (SMG)#

Native DP Mode#

Native DP (built-in Data Parallelism) in SGLang creates multiple worker processes within a single SGLang instance, under the control of DataParallelController with the launching parameter of dp-size.

# Native DP mode
python -m sglang.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --dp-size 4

Limitations:

  • Built-in in-process load balancing only (e.g., round_robin, total_requests, total_tokens)

  • No cache-aware routing

  • Limited observability and metrics

  • No fault tolerance or circuit breakers

  • Not suitable for production workloads

⚠️ Native DP is highly not recommended for use right now. It is only used in some ancient/outdated RL frameworks. You can use SGLang Model Gateway (SMG) to power up your data parallelism in any use case.

SMG’s Performance#

The cache-aware routing policy in SMG significantly improves performance for workloads with shared prefixes:

Metric

Without Cache-Aware

With Cache-Aware SMG

Throughput (token/s)

82,665

158,596 (+92%)

Cache Hit Rate

20%

75% (+275%)

Benchmark from SGLang v0.4 blog, workload with multiple long prefix groups, 8x A100 80GB GPUs, dp-size=8

When to Use Each#

Use Native DP when:

  • ~Never use Native/Naive DP~

  • Learning material of DP routing

Use SMG-Based DP when:

  • In any case, when you think DP is needed

  • Production deployments

  • Multi-node distributed setups

  • Workloads with shared prefixes (high cache reuse potential)

  • You need high availability and reliability features

  • You require detailed observability and metrics

  • You want to have highly efficient RL rollout systems

Note that for RL rollout systems, there are four crucial reasons that SMG-Based DP is far better than naive DP routing. Details can be found at Load Balancing Router in RL.

Quick Start For SMG#

Installation

pip install sglang-router
# or
pip install "sglang[all]"

Option A: Co-launch Workers and SMG (Simplest)

This is the easiest way to get started - SMG and workers are launched together:

python -m sglang_router.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --dp-size 4 \
    --host 0.0.0.0 \
    --port 30000

Option B: Separate Launch (Multi-Node)

For distributed deployments across multiple machines:

  1. Launch workers on each node

# Node 1
python -m sglang.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --port 8000

# Node 2
python -m sglang.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --port 8000

  1. Launch SMG pointing to workers

python -m sglang_router.launch_router \
    --worker-urls http://node1:8000 http://node2:8000 \
    --policy cache_aware \
    --host 0.0.0.0 \
    --port 30000

Option C: Dynamic Worker Registration

For elastic deployments where workers can be added/removed dynamically:

# Launch SMG first
python -m sglang_router.launch_router \
    --policy cache_aware \
    --host 0.0.0.0 \
    --port 30000

# Register workers dynamically
curl -X POST http://localhost:30000/workers \
    -H "Content-Type: application/json" \
    -d '{"url": "http://worker1:8000"}'

curl -X POST http://localhost:30000/workers \
    -H "Content-Type: application/json" \
    -d '{"url": "http://worker2:8000"}'

Load Balancing Policies#

SMG supports multiple load balancing policies:

Policy

Description

Best For

cache_aware

Combines cache locality with load balancing

Recommended for most workloads

round_robin

Cycles through workers in order

Simple, predictable distribution

random

Random worker selection

Baseline, testing

power_of_two

Samples two workers, picks lighter one

Low latency requirements

Cache-Aware Policy (Default, Recommended)

The cache-aware policy provides the best performance for most workloads:

python -m sglang_router.launch_router \
    --worker-urls http://worker1:8000 http://worker2:8000 \
    --policy cache_aware \
    --cache-threshold 0.5 \
    --balance-abs-threshold 32 \
    --balance-rel-threshold 1.5 \
    --eviction-interval-secs 120 \
    --max-tree-size 67108864

How it works:

  1. Maintains an approximate radix tree for each worker based on request history

  2. Routes requests to workers with the highest prefix match (cache hit)

  3. Falls back to shortest-queue routing when load is imbalanced

  4. Automatically evicts old entries to prevent memory overflow

Best Practices#

  1. Start with cache_aware policy - It provides the best balance between cache locality and load distribution for most workloads

  2. Use SMG for production - Prefer sglang_router.launch_server over sglang.launch_server for better reliability and observability

  3. Enable health checks - Configure --router-health-check-interval-secs to detect and remove unhealthy workers automatically

Recommended command with best practices applied:

python -m sglang_router.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --dp-size 4 \
    --router-policy cache_aware \
    --router-health-check-interval-secs 30 \
    --router-prometheus-port 10001 \
    --host 0.0.0.0 \
    --port 30000

For advanced configuration (circuit breakers, retries, Prometheus metrics, K8s integration), see SGLang Model Gateway Documentation.

Verifying Traffic Distribution#

After launching SMG, verify that traffic is being distributed correctly:

1. Check worker status:

curl http://localhost:30000/workers

2. Check load distribution:

curl http://localhost:30000/get_loads

3. Monitor metrics (if Prometheus enabled):

# Key metrics to check
smg_router_requests_total{model="..."}
smg_worker_requests_active{worker="..."}
sglang_cache_hit_rate{source="..."}

For detailed metrics and monitoring setup, see SGLang Model Gateway Documentation.

Reference#

Strategy

Use Case

Key Benefit

Native DP (--dp-size)

Never

Easy to understand, not rust based

SMG-Based DP

Production (recommended)

Cache-aware routing, high availability

DPA (--dp-size N --enable-dp-attention)

DeepSeek/MLA models

Eliminates KV cache duplication, improved throughput

DPA + EP

DeepSeek MoE models

Significant throughput improvement vs vanilla TP

Recommended production setup for DeepSeek:

  1. Enable DPA for attention layers (--dp-size 8 --enable-dp-attention)

  2. Enable EP for MoE layers (--ep 8 --moe-a2a-backend deepep)

  3. Use SMG with cache_aware policy
