DP, DPA and SGLang DP Router

This guide explains the difference between Data Parallelism (DP) and Data Parallelism Attention (DPA), how to enable each mode correctly, and how to use the SGLang Model Gateway (SMG) for production-grade DP deployments.

Data Parallelism (DP)

Data Parallelism (DP) is the most common parallelism strategy that replicates the entire model across multiple GPU sets and processes different batches of requests in parallel. Each GPU set handles independent requests. With dedicated routing strategies, as we will introduce later, with those proper routing algorithms in SGLang Model Gateway, the throughput of your serving system could be multiplied nearly linearly.

Key characteristics

Each replica has a full copy of the model
Requests are distributed/scattered across replicas
No inter-replica communication during one request’s inference (for simple DP)

Data Parallelism Attention (DPA)

Data Parallelism Attention (DPA), also known as DP Attention, is an advanced parallelism strategy. While DPA provides the most significant benefits for Multi-Head Latent Attention (MLA) models (such as DeepSeek, MiniMax, Kimi-K2), it also supports standard attention models like Qwen.

The Problem with Tensor Parallelism for MLA Models

The most common parallelism strategy for inference is Tensor Parallelism (TP). However, TP might not be the most efficient strategy for certain models. For example, DeepSeek models use MLA and only have one KV head. If we use tensor parallelism on 8 GPUs, it will lead to:

Duplicated KV cache across all GPUs
Unwanted memory usage that limits batch size
Reduced throughput due to memory constraints

How DPA Works

DPA addresses these limitations by applying data parallelism specifically to the attention component.

Each DP replica:

Processes different batches independently (can be in different forward modes: prefill, decode, or idle)
Maintains its own KV cache (no duplication)
Enables significantly larger batch sizes due to memory savings

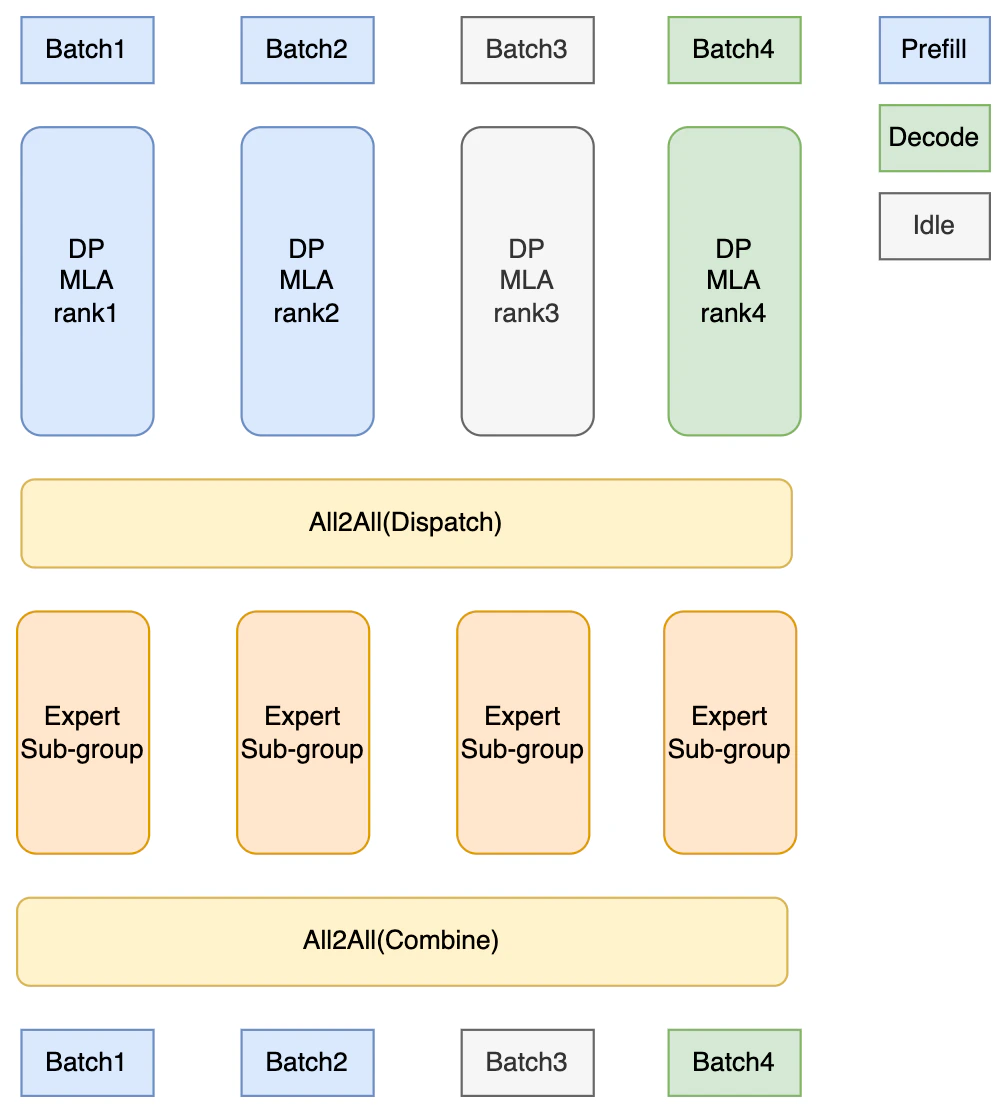

Communication patterns in DPA + EP:

All2All (Dispatch): Routes tokens to expert sub-groups based on gating decisions
All2All (Combine): Gathers computed results from experts back to original token positions

Key benefits of DPA

Significantly reduced KV cache memory: Each DP replica only stores KV cache for its own batches
Larger batch sizes: Memory savings enable larger batch sizes
Improved decoding throughput: Significant throughput gains for MLA-based models
Independent forward modes: Each DP replica can be in different forward modes (prefill, decode, or idle) and handles its assigned batches independently during attention computation

DPA with Expert Parallelism for MoE

For MoE models like DeepSeek, DPA is often paired with Expert Parallelism (EP) for best throughput at scale. However, DPA does not require EP: you can enable DPA without EP if your deployment does not need expert sharding.

Distribute 256+ expert weights across GPUs (cannot fit on a single GPU)
Enable efficient all-to-all token routing via DeepEP
Scale to large clusters (up to 5x throughput improvement over vanilla TP)

Recommended setup for DeepSeek

python -m sglang.launch_server \
    --model-path deepseek-ai/DeepSeek-V3 \
    --tp 8 \
    --dp-size 8 \
    --ep 8 \
    --enable-dp-attention \
    --moe-a2a-backend deepep \
    --moe-runner-backend deep_gemm

Note: --dp-size must be explicitly set when using --enable-dp-attention. If dp_size is 1 (default), DPA will be disabled.

For detailed EP configuration (DeepEP, Two-Batch Overlap, EPLB), see Expert Parallelism.

Target Models

DPA supports the following model architectures:

MLA (Multi-Head Latent Attention) models - where DPA provides the most significant benefits:
- DeepSeek family (DeepSeek-V2, DeepSeek-V3, DeepSeek-R1)
- MiniMax models
- Kimi-K2
- Other models using MLA architecture
Standard attention models - also supported:
- Qwen models (see PR #6121)

For models like Llama, with standard GQA, standard DP, or TP is typically recommended. To enable DPA, add --enable-dp-attention to your server launch command.

Activation Logic

DPA is enabled explicitly via server arguments (CLI or config). You must set both --dp-size and --enable-dp-attention:

python -m sglang.launch_server \
    --model-path deepseek-ai/DeepSeek-V3 \
    --tp 8 \
    --dp-size 8 \
    --enable-dp-attention

Important: --dp-size must be greater than 1 for DPA to work. When dp_size == 1 (default), --enable-dp-attention is automatically disabled. The constraint tp_size % dp_size == 0 must also be satisfied.

Standard DP for MLA models

Note that MLA models, of course, also support DP. Suppose you want to enable standard DP for MLA models. First, launch each MLA model’s replica independently. You may launch these replicas one by one with DPA enabled. After launching each MLA model’s replica, launch an SMG and connect all the replicas to the SMG. A detailed explanation of SMG is as follows.

Modern Data Parallelism SGLang Model Gateway (SMG)

Native DP Mode

Native DP (built-in Data Parallelism) in SGLang creates multiple worker processes within a single SGLang instance, under the control of DataParallelController with the launching parameter of dp-size.

# Native DP mode
python -m sglang.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --dp-size 4

Limitations:

Built-in in-process load balancing only (e.g., round_robin, total_requests, total_tokens)
No cache-aware routing
Limited observability and metrics
No fault tolerance or circuit breakers
Not suitable for production workloads

⚠️ Native DP is highly not recommended for use right now. It is only used in some ancient/outdated RL frameworks. You can use SGLang Model Gateway (SMG) to power up your data parallelism in any use case.

SMG-Based DP (Recommended)

Starting from September 2024, SGLang Model Gateway, i.e., SMG, formerly named as SGLang DP Router, was built especially as a production-ready DP routing system with Rust. It starts from DP routing, but later we further expanded its scope to coordinate RL, PD Disaggregation, and other scenarios. This doc only discusses SMG’s usage in DP routing. For other usage, please refer to SGLang Model Gateway Documentation.

To achieve the best production-level routing performance and reduce the overhead to an extreme extent, we use Rust to build SMG, but not Python, since Python is never FAST enough.

We strongly recommend using the SGLang Model Gateway (SMG) for production-grade Data Parallelism. SMG provides significant advantages over native DP mode.

# SMG-based DP mode (Recommended)
python -m sglang_router.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --dp-size 4

⚠️ Note that SMG and Naive DP share the same launching parameter, --dp-size. But the entrypoint of Naive DP is python -m sglang.launch_server, and SMG’s entrypoint is python -m sglang_router.launch_server. Advantages of SMG-Based DP:

Feature	Native DP	SMG-Based DP
Load Balancing	Built-in in-process methods	Advanced policies (cache-aware, power-of-two, etc.)
Cache Awareness	❌ No	✅ Yes - significantly higher cache hit rate
Throughput	Baseline	Significant improvement
Multi-Node Support	Limited	✅ Full support
Worker Health Monitoring	Basic	✅ Circuit breakers, health checks
Reliability	Basic	✅ Retries, rate limiting, queuing
Observability	Basic metrics	✅ 40+ Prometheus metrics, OpenTelemetry
Hot Worker Add/Remove	❌ No	✅ Yes

SMG’s Performance

The cache-aware routing policy in SMG significantly improves performance for workloads with shared prefixes:

Metric	Without Cache-Aware	With Cache-Aware SMG
Throughput (token/s)	82,665	158,596 (+92%)
Cache Hit Rate	20%	75% (+275%)

Benchmark from SGLang v0.4 blog, workload with multiple long prefix groups, 8x A100 80GB GPUs, dp-size=8

When to Use Each

Use Native DP when:

~~Never use Native/Naive DP~~
Learning material of DP routing

Use SMG-Based DP when:

In any case, when you think DP is needed
Production deployments
Multi-node distributed setups
Workloads with shared prefixes (high cache reuse potential)
You need high availability and reliability features
You require detailed observability and metrics
You want to have highly efficient RL rollout systems

Note that for RL rollout systems, there are four crucial reasons that SMG-Based DP is far better than naive DP routing. Details can be found at Load Balancing Router in RL.

Quick Start For SMG

Installation

pip install sglang-router
# or
pip install "sglang[all]"

Option A: Co-launch Workers and SMG (Simplest) This is the easiest way to get started - SMG and workers are launched together:

python -m sglang_router.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --dp-size 4 \
    --host 0.0.0.0 \
    --port 30000

Option B: Separate Launch (Multi-Node) For distributed deployments across multiple machines:

Launch workers on each node

# Node 1
python -m sglang.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --port 8000

# Node 2
python -m sglang.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --port 8000

Launch SMG pointing to workers

python -m sglang_router.launch_router \
    --worker-urls http://node1:8000 http://node2:8000 \
    --policy cache_aware \
    --host 0.0.0.0 \
    --port 30000

Option C: Dynamic Worker Registration For elastic deployments where workers can be added/removed dynamically:

# Launch SMG first
python -m sglang_router.launch_router \
    --policy cache_aware \
    --host 0.0.0.0 \
    --port 30000

# Register workers dynamically
curl -X POST http://localhost:30000/workers \
    -H "Content-Type: application/json" \
    -d '{"url": "http://worker1:8000"}'

curl -X POST http://localhost:30000/workers \
    -H "Content-Type: application/json" \
    -d '{"url": "http://worker2:8000"}'

Load Balancing Policies

SMG supports multiple load balancing policies:

Policy	Description	Best For
`cache_aware`	Combines cache locality with load balancing	Recommended for most workloads
`round_robin`	Cycles through workers in order	Simple, predictable distribution
`random`	Random worker selection	Baseline, testing
`power_of_two`	Samples two workers, picks lighter one	Low latency requirements

Cache-Aware Policy (Default, Recommended) The cache-aware policy provides the best performance for most workloads:

python -m sglang_router.launch_router \
    --worker-urls http://worker1:8000 http://worker2:8000 \
    --policy cache_aware \
    --cache-threshold 0.5 \
    --balance-abs-threshold 32 \
    --balance-rel-threshold 1.5 \
    --eviction-interval-secs 120 \
    --max-tree-size 67108864

How it works:

Maintains an approximate radix tree for each worker based on request history
Routes requests to workers with the highest prefix match (cache hit)
Falls back to shortest-queue routing when load is imbalanced
Automatically evicts old entries to prevent memory overflow

Best Practices

Start with cache_aware policy - It provides the best balance between cache locality and load distribution for most workloads
Use SMG for production - Prefer sglang_router.launch_server over sglang.launch_server for better reliability and observability
Enable health checks - Configure --router-health-check-interval-secs to detect and remove unhealthy workers automatically

Recommended command with best practices applied:

python -m sglang_router.launch_server \
    --model-path meta-llama/Meta-Llama-3.1-8B-Instruct \
    --dp-size 4 \
    --router-policy cache_aware \
    --router-health-check-interval-secs 30 \
    --router-prometheus-port 10001 \
    --host 0.0.0.0 \
    --port 30000

For advanced configuration (circuit breakers, retries, Prometheus metrics, K8s integration), see SGLang Model Gateway Documentation.

Verifying Traffic Distribution

After launching SMG, verify that traffic is being distributed correctly: 1. Check worker status:

curl http://localhost:30000/workers

2. Check load distribution:

curl http://localhost:30000/get_loads

3. Monitor metrics (if Prometheus enabled):

# Key metrics to check
smg_router_requests_total{model="..."}
smg_worker_requests_active{worker="..."}
sglang_cache_hit_rate{source="..."}

For detailed metrics and monitoring setup, see SGLang Model Gateway Documentation.

Reference

Strategy	Use Case	Key Benefit
Native DP (`—dp-size`)	Never	Easy to understand, not rust based
SMG-Based DP	Production (recommended)	Cache-aware routing, high availability
DPA (`—dp-size N —enable-dp-attention`)	DeepSeek/MLA models	Eliminates KV cache duplication, improved throughput
DPA + EP	DeepSeek MoE models	Significant throughput improvement vs vanilla TP

Recommended production setup for DeepSeek:

Enable DPA for attention layers (--dp-size 8 --enable-dp-attention)
Enable EP for MoE layers (--ep 8 --moe-a2a-backend deepep)
Use SMG with cache_aware policy

Related documentation:

Expert Parallelism - DeepEP, Two-Batch Overlap, EPLB
SGLang Model Gateway Documentation - SMG configuration & troubleshooting
Large-Scale EP Blog - 96 GPU deployment guide
